High-yield stainless steel food-grade tumbler sieve grain separator

Product Introduction

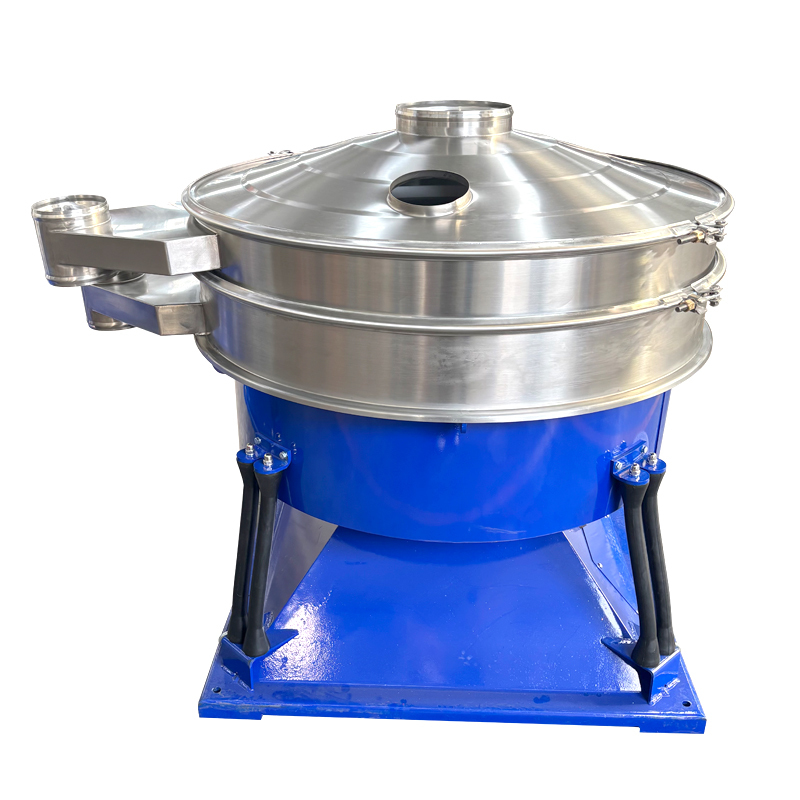

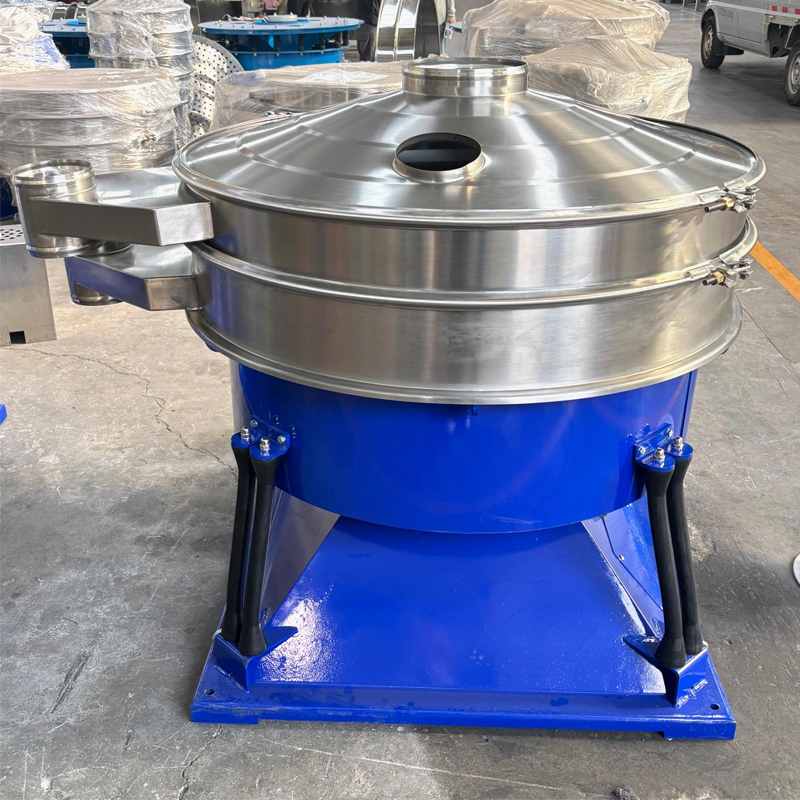

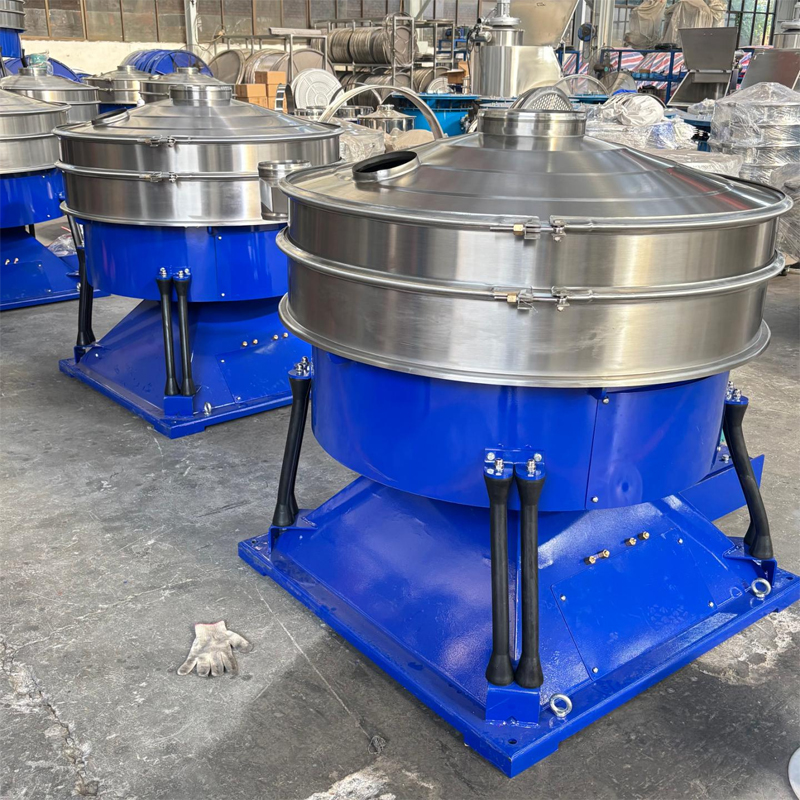

The circular swing sieve is an efficient screening equipment designed based on bionics. It achieves fine classification and impurity removal of granular materials through simulating the combined motion of manual swinging and vibration. It is suitable for industries such as food and medicine, and is particularly adept at handling fine powders, micro-powders, and easily agglomerating materials.
It mostly adopts 1-5 layers of sieve surfaces, which can complete multi-granularity separation in one go. The sieve separation efficiency exceeds 95%. It also has the advantages of large processing capacity, slow wear of the sieve mesh, and low noise. It can flexibly adapt to different material requirements and solve the problem of clogged sieves.

Working principle

After the materials fall from the center of the sieve body, they are uniformly dispersed towards the edge of the sieve surface under the combined action of motion. At the same time, they are stratified according to particle size differences: fine particles quickly pass through the corresponding mesh sieve, while coarse particles slide along the sieve surface towards the edge discharge port. Multiple layers of sieves can simultaneously complete the separation of multiple particle size grades, effectively solving the problems of fine powder blocking the sieve and incomplete classification.

Product Features

1. Efficient screening: The combined motion of swinging and vibration thoroughly separates the materials, with the fine powder screening efficiency exceeding 95%.
2. Multi-layer operation: The 1-5 layer screen surfaces can simultaneously separate multi-granularity materials, improving processing efficiency.
3. Low consumption and low loss: The running noise is low, the energy consumption is low, the screen mesh wears slowly, and the service life is long.
4. Strong adaptability: The eccentric block angle and rotational speed can be adjusted to adapt to different characteristics of materials in various industries.
5. Anti-blocking screen: The combined motion reduces the agglomeration of materials and prevents the screen from getting clogged, ensuring continuous operation.

Chemicals, food and spices, plastics, mining, pharmaceuticals, woodworking and plywood, metallurgy, rubber, feed, fertilizer, sugar and industries, etc.

Packing and shipping

1. Package:

Choose a wooden box with sturdy packaging materials to provide adequate protection and support.

2. Logo and documentation:

Clearly mark the name, model, weight, size and quantity of the equipment on the packaging.
3. Prepare necessary shipping documents and certificates, such as invoices, packing lists, transportation contracts and insurance certificates, etc.
4. Shipping method:

Choose the appropriate shipping method, such as sea, air or land, making your choice based on destination and time requirements.

Why choose us

About us





FAQ

Q1: What particle size ranges is the Electric Tumbler Sieve suitable for?
A: Electric Tumbler Sieve is suitable for a wide range of particle sizes, from micron-level fine particles to millimeter-level coarse particles, and can be screened and classified.

Q2: What is the screening accuracy of the electric swing screen?
A: The screening accuracy of the electric swing screen depends on factors such as screen hole size, material properties and screening parameters. Normally, it can achieve high screening accuracy and can meet the screening requirements of different particle sizes.
Q3: What are the advantages of Electric Tumbler Sieve compared with other types of screening equipment?
A: Compared with other types of screening equipment, Electric Tumbler Sieves have higher screening accuracy, screening efficiency and flexibility.
